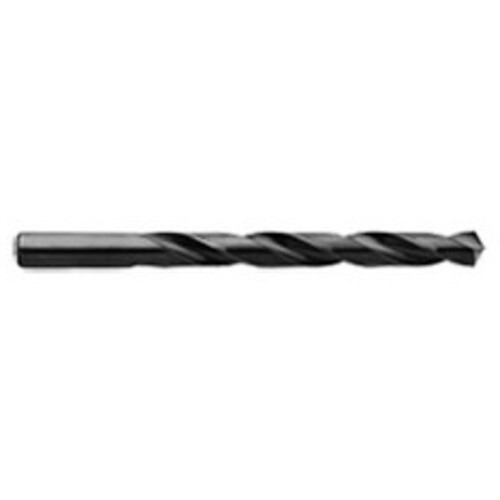

| Drill Bit Size / Cutting Diameter (DC) | #1 | Cutting Depth | 2-5/8″ |
| Decimal Equivalent | 0.2280 | Flute Length | 2-5/8″ |
| Drill Bit Size / Cutting Diameter (DC) - Letter / Wire Gauge | #1 | Point Shape | Standard |
| Measurement Type | Wire Gauge | Shank Type | Round |
| Angle | 118 Degrees | Connection Diameter Machine Side (DCONMS) | 0.228″ |
| Cutting Edge Material | HSS | Shape | General Purpose |
| Flute Type | Standard | Tool Radius | 118 Degrees |
| Coating | Black Oxide | Series/List # | 1340 |
| Coolant Supply Property (CSP) | External | Overall Length (OAL) | 3-7/8″ |
Product Features
| Remarks | Country of Origin | USA |
Shipping Info
LocalField10
0
Package Length
4.10000
Package Width
.23000
Package Height
.23000
Package Weight
0.04
