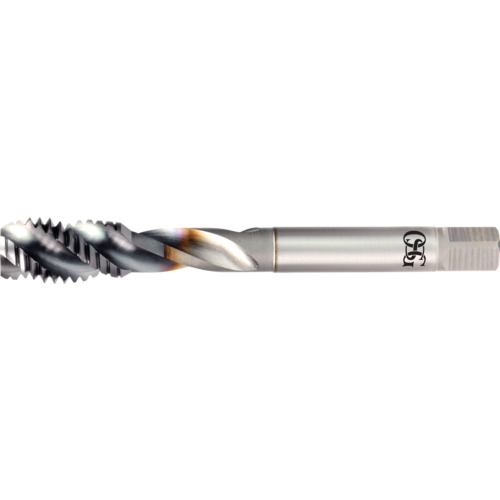

| Thread Diameter Size (TDZ) | M6 | Thread Tolerance Class (TCTR) | D5 |
| Thread Pitch (TP) | 1 mm | Tool Type | High Performance Tap |
| Thread Standard | Metric | Chamfer | 2.5P |
| Overall Length (OAL) | 80 mm | Coating | Vanadium |
| Thread Cutting Part Length (THL) | 7 mm | Flute Type | Spiral |
| Usable Length (LU) | 29.9 mm | End Shape | Chamfer |
| Connection Diameter Machine Side (DCONMS) | 6.47 mm | Style | Modified Bottoming |
| Flute Count (NOF) | 3 | Measurement Type | Metric |
| Flute Helix Angle (FHA) | Variable | Series/List # | 16500 |
| Cutting Edge Material | HSS-PM |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Length
3.62500
Package Width
.37200
Package Height
.34100
Package Weight
0.016
