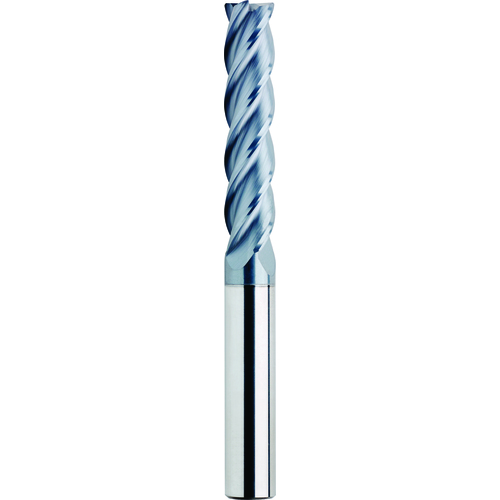

1″ × 1″ × 7″ 0.0600″ C/R 4 Flute Single End Carbide Finishing End Mill-veri4 Series/List #5981
| Cutting Diameter (DC) | 1″ | Corner Radius (RE) | 0.06″ |
| Connection Diameter Machine Side (DCONMS) | 1″ | Tool Type | Single End |
| Depth of Cut Maximum (APMX) | 4″ | Length Group | Extra Long |
| Overall Length (OAL) | 7″ | Coolant Supply Property (CSP) | External |
| Cutting Edge Material | Carbide | Style | Finishing |
| Coating | AlTiCrN | Decimal Equivalent | 1″ |
| Flute Count (NOF) | 4 | Measurement Type | Inch |
| Flute Helix Angle (FHA) | Variable | Series/List # | 5981 |
| Shank Type | Round | Corner Radius (RE) / Chamfer Width (CHW) | 0.06″ |
| End Shape | Corner Radius | Single / Double End | Single End |
| Usable Length (LU) | 4″ | Center Cutting | Yes |
| Applicable Material | | Stainless Steel | Cast Iron | Super-Alloys / Titanium | | Trade Name | VP2 End Mill |
| Application | Finishing |
Product Features
| Country of Origin | USA |
Shipping Info
Package Length
7.87500
Package Width
1.00000
Package Height
1.00000
Package Weight
2.03
