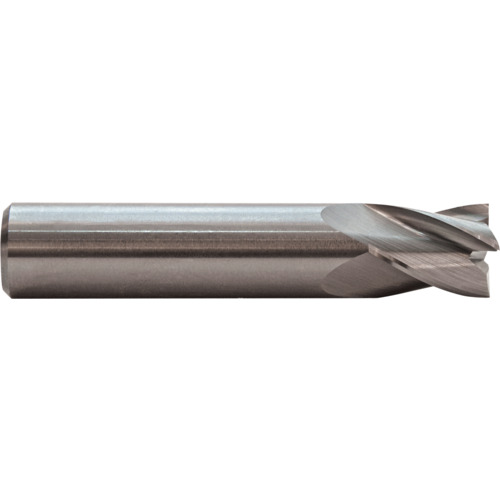

1/16 Dia. 1/8 LOC 1-1/2 OAL 4 Flute Carbide S/E HP End Mill-Uncoated Alternate Manufacture # 16309
Alternate Manufacture # 16309
| Cutting Diameter (DC) | 1/16″ | Coating | Uncoated |
| Connection Diameter Machine Side (DCONMS) | 1/8″ | Flute Count (NOF) | 4 |
| Depth of Cut Maximum (APMX) | 1/8″ | Tool Type | Single-End|High Performance |
| Overall Length (OAL) | 1-1/2″ | Length Group | Stub |
| Cutting Edge Material | Carbide | Decimal Equivalent | 0.0625″ |
Product Features
| Family Description | Alternate Manufacture # 16309 | Country of Origin | UNITED STATES |
| Remarks | •4 Flute End Mill •center cutting •Stub Length •30 Degree Helix •Straight Shank •Designed for aggressive milling of most materials with reduced deflection, improved tool life and overall economy. |
Shipping Info
Package Length
1.62500
Package Width
.25000
Package Weight
.009
