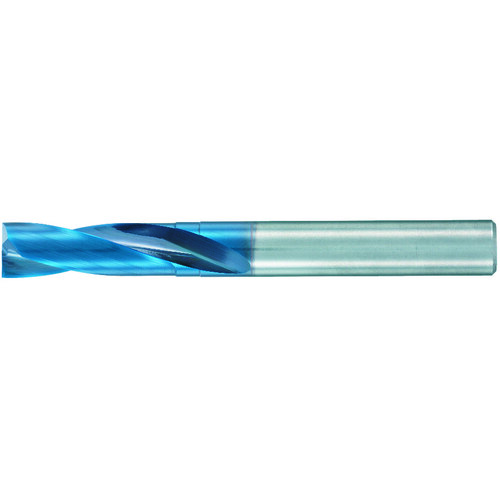

3/8″ Dia. × 0.315″ Shank × 1.693″ Flute Length × 3.1497″ OAL, 2xD, 180°, Aqua EX, 2 Flute, External, Round Solid Carbide Drill
| Drill Bit Size / Cutting Diameter (DC) | 3/8″ | Tool Type | Solid Carbide Drills |
| Drill Bit Size / Cutting Diameter (DC) - Inch | 3/8″ | Flute Type | Spiral |
| Decimal Equivalent | 0.375″ | Point Shape | Facet Relieved |
| Length Group | 2xD | Measurement Type | Inch |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | | Series/List # | L9611 |
| Connection Diameter Machine Side (DCONMS) | 0.315″ | Usable Length (LU) | 45 mm |
| Coolant Supply Property (CSP) | External | Length Chip Flute (LCF) | 1.693″ |
| Point Angle (SIG) | 180 Degrees | Overall Length (OAL) | 3.1497″ |
| Flute Helix Angle (FHA) | 20 Degrees | Flute Count (NOF) | 2 |
| Shank Type | Round | Cutting Direction (HAND) | Right Hand |
| Cutting Edge Material | Carbide |
Product Features
| Remarks | Suitable for drilling in: Structural Steel, Carbon Steel, Pre-Hardened Steel, Alloy Steel, Hardened Steels, Mold Steels 40~50HRC Hardened Steel, 400 Series Stainless Steel, Cast Iron, Aluminum Alloys, Copper Alloys | Country of Origin | USA |
Shipping Info
LocalField10
0
Package Length
3.75000
Package Width
.50000
Package Height
.50000
Package Weight
0.12
